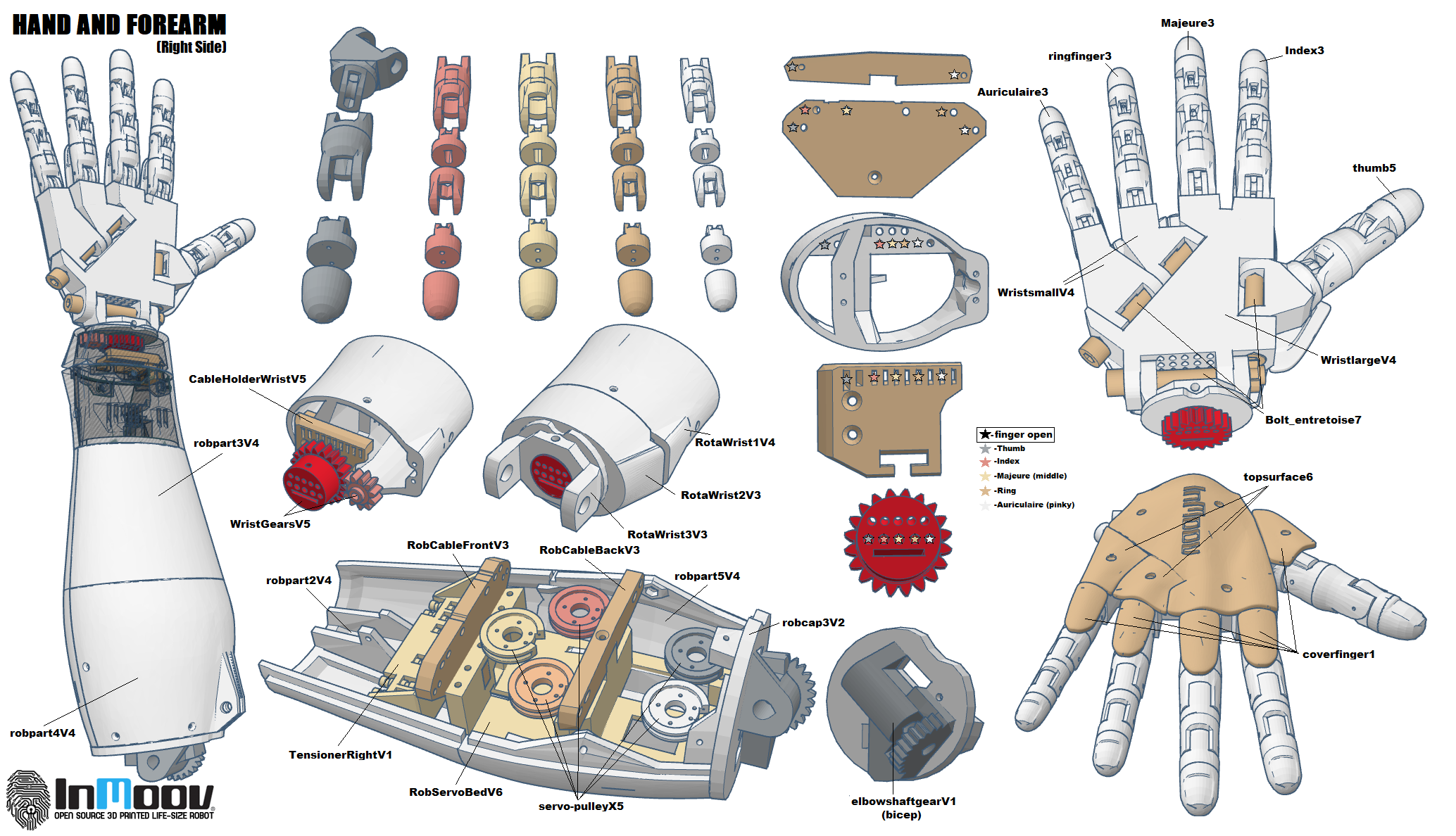

Hand and Forarm assembly 3D views

You will find here some instructions on how to assemble InMoov Arm and Forarm.

Thanks to Shido Xen for this layout sheet.

inmoov palm assembly

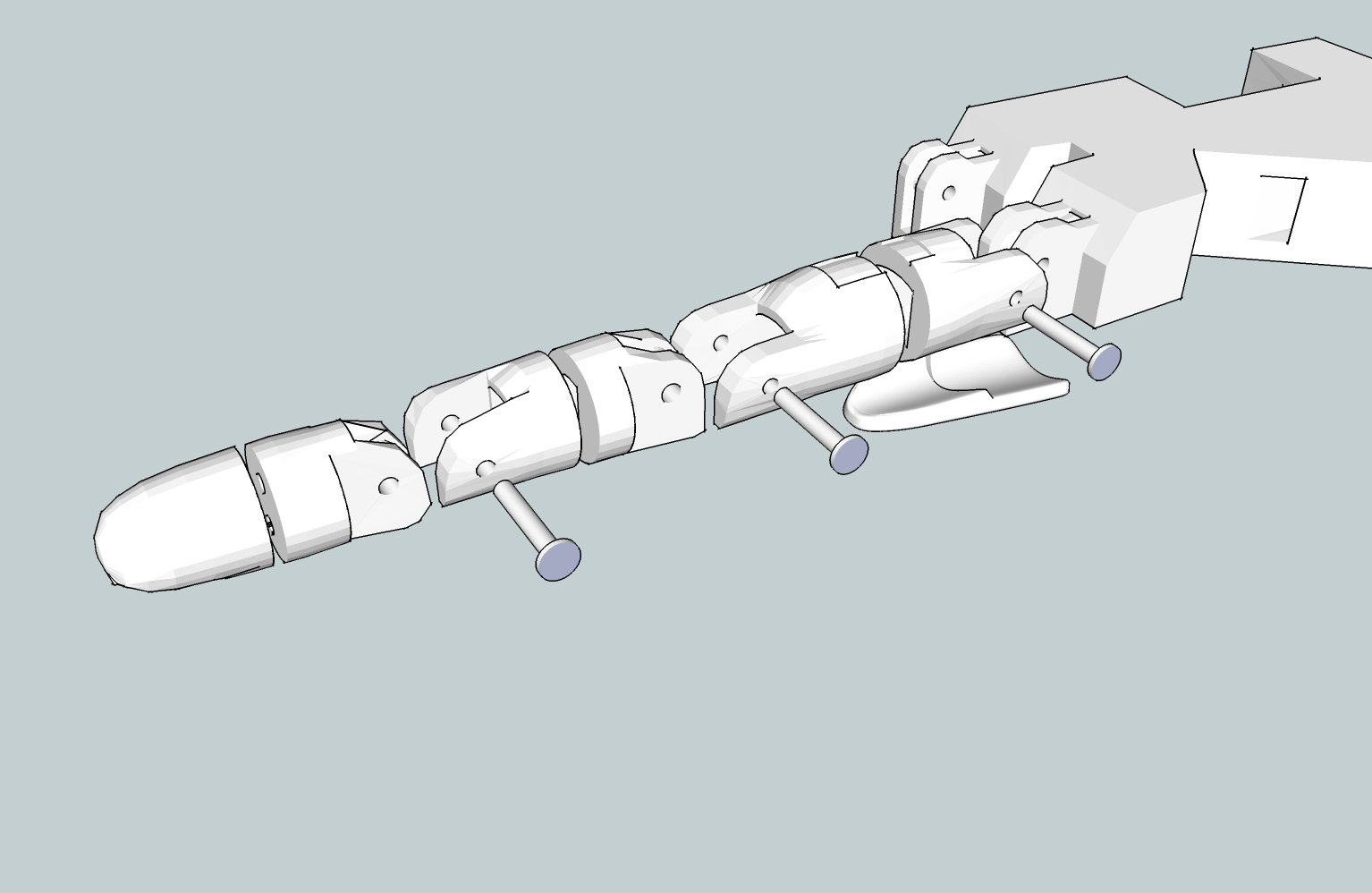

inmoov finger

thumb assembly

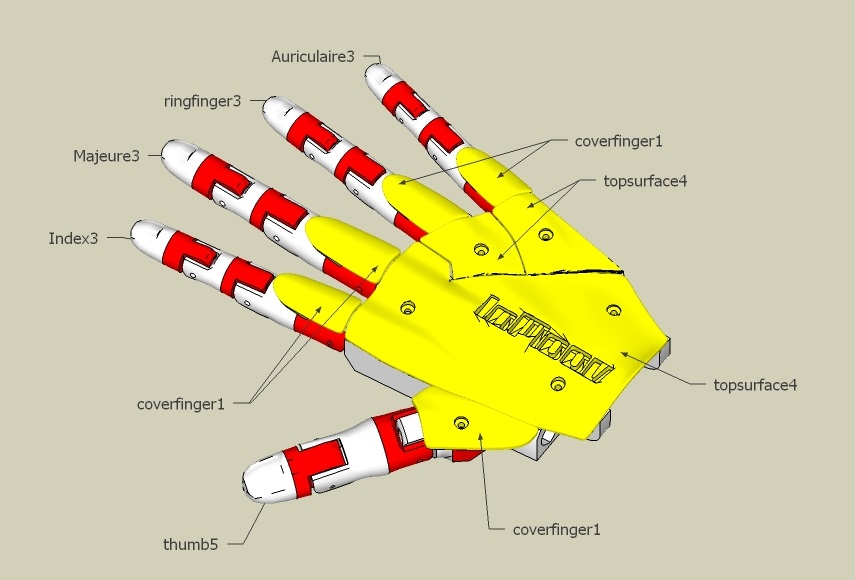

Hand. Thanks to Anar for this colored sketchup (http://www.reppersdelight.spacymen.com)

Hand Verso. Thanks to Anar for this colored sketchup (http://www.reppersdelight.spacymen.com)

wrist assembly

Cover Assembly

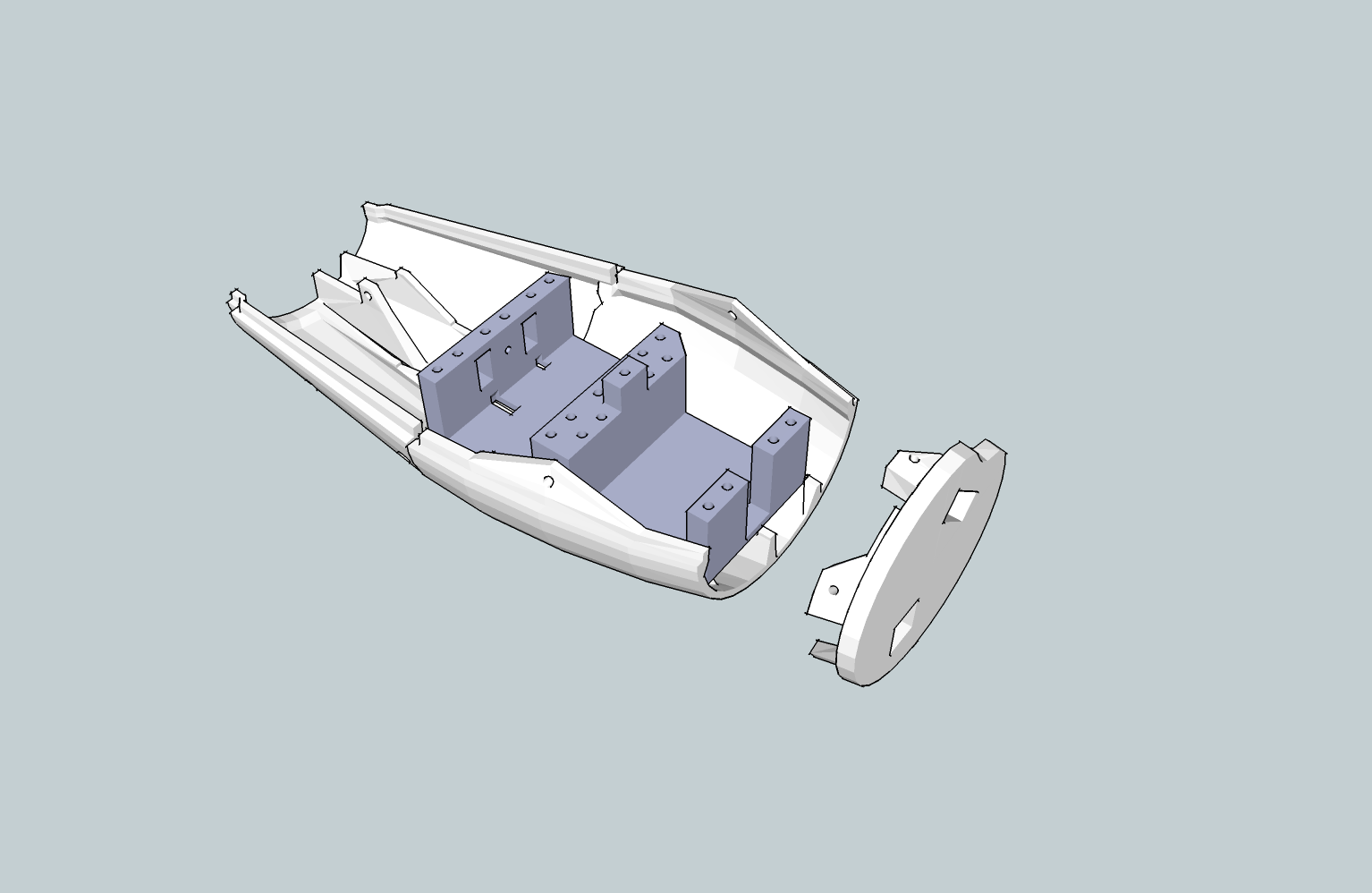

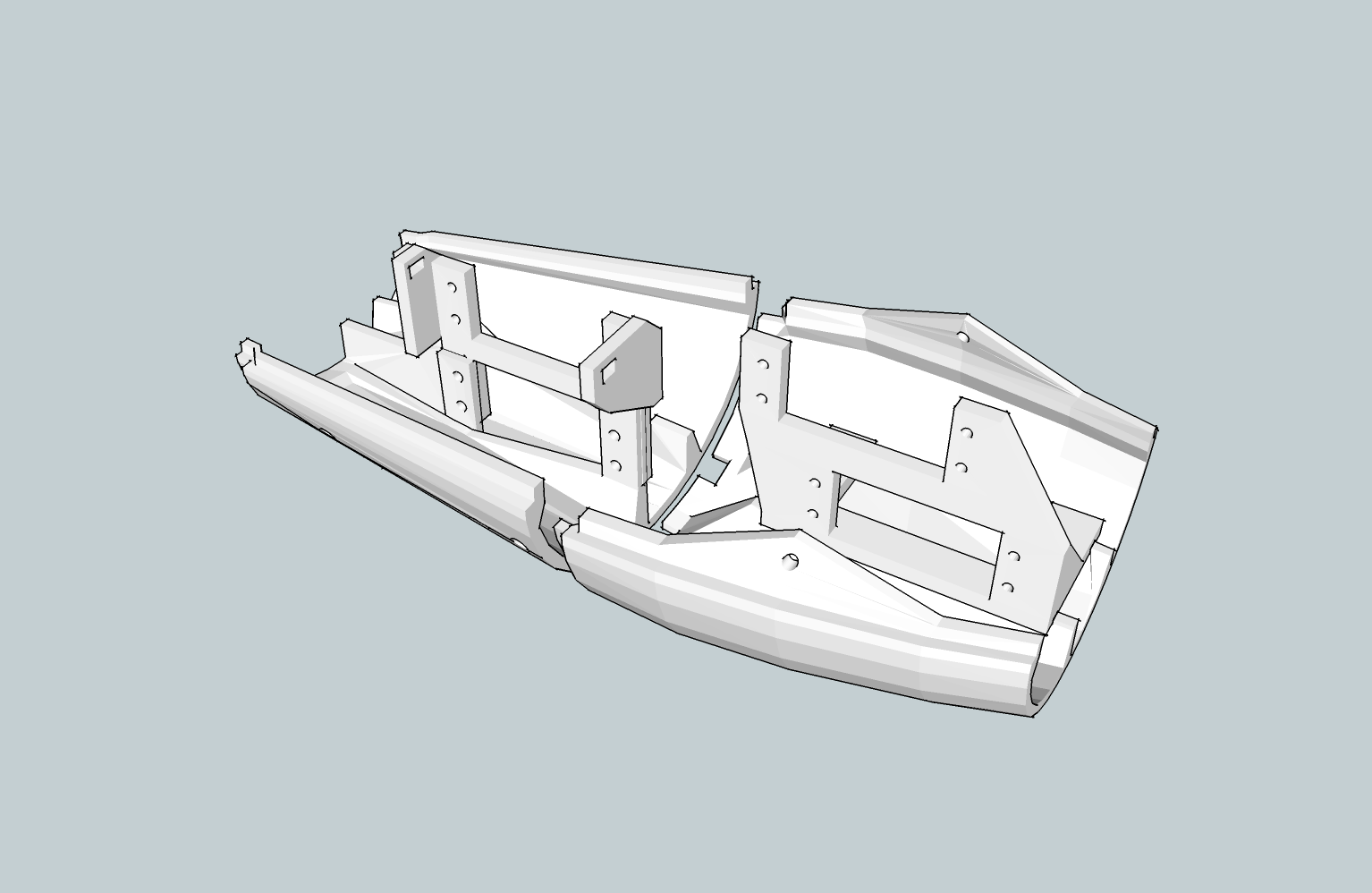

Servo brackets second version

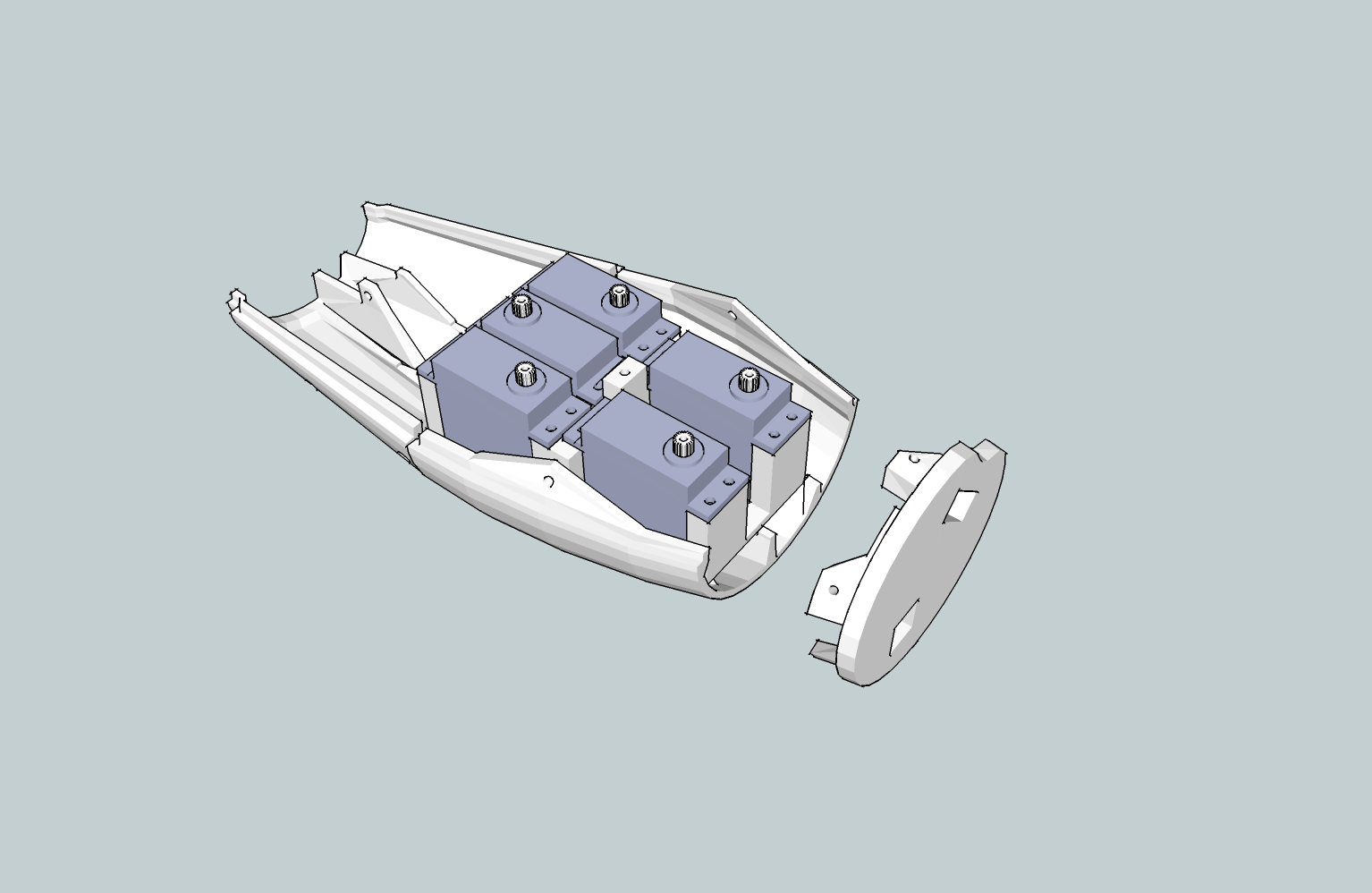

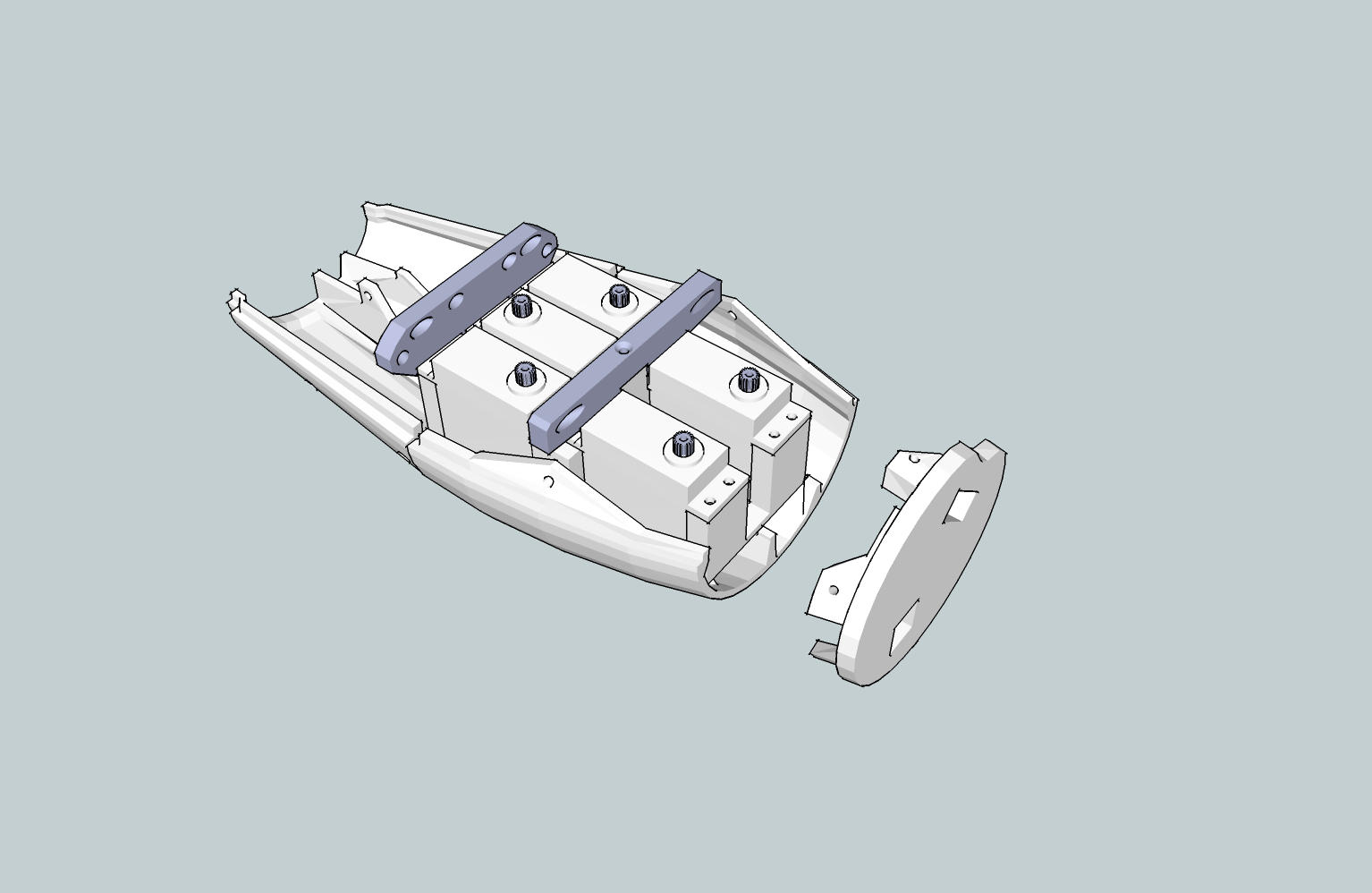

Servo brackets third version

Right forarm

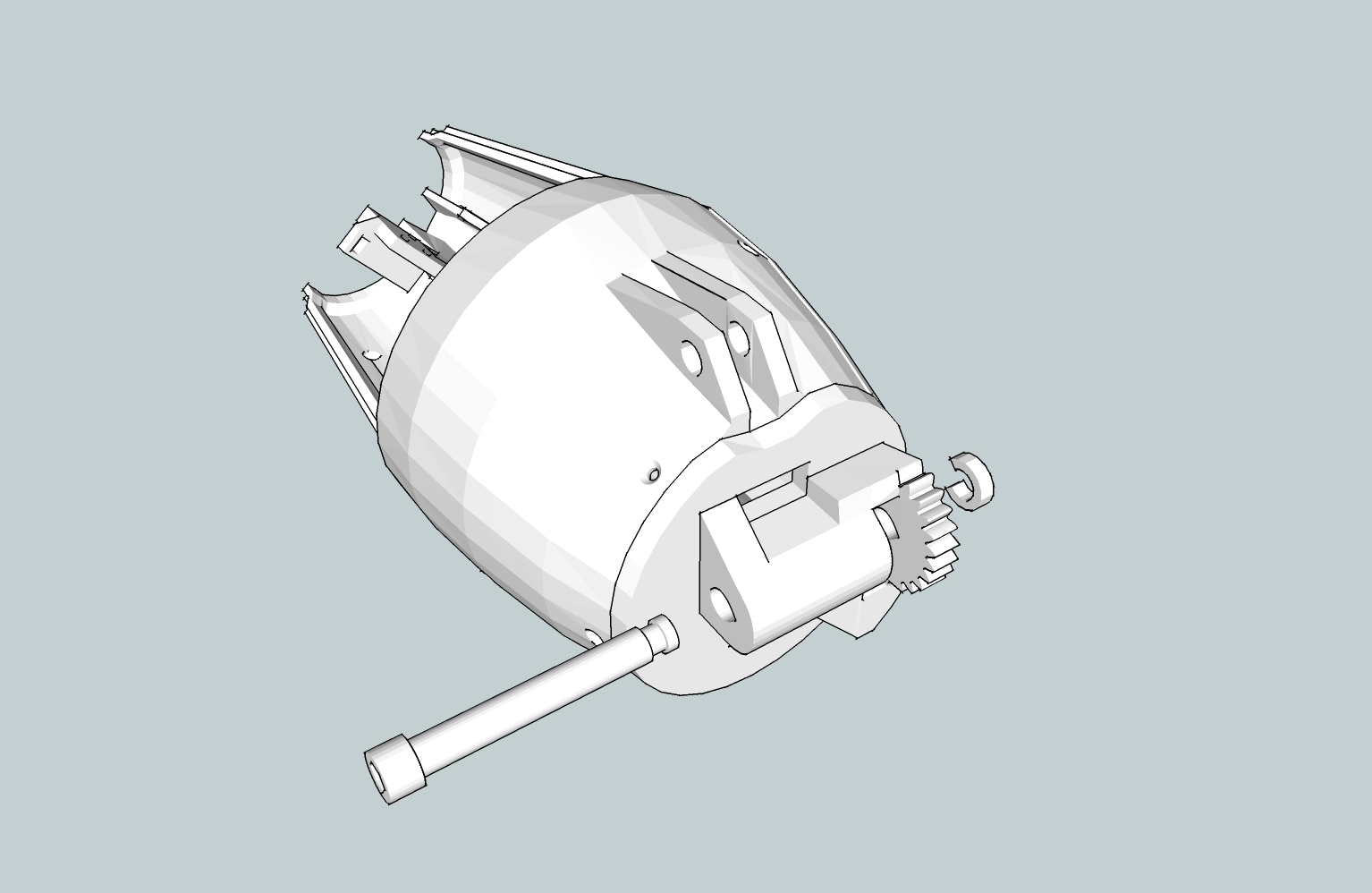

Elbow mounting

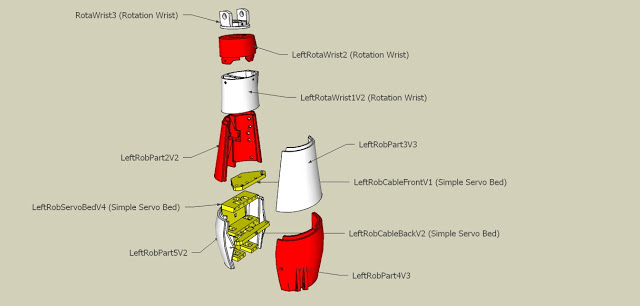

Left Forarm with Rotational Wrist and SimpleServoBed. Thanks to Anar for this colored sketchup (http://www.reppersdelight.spacymen.com)

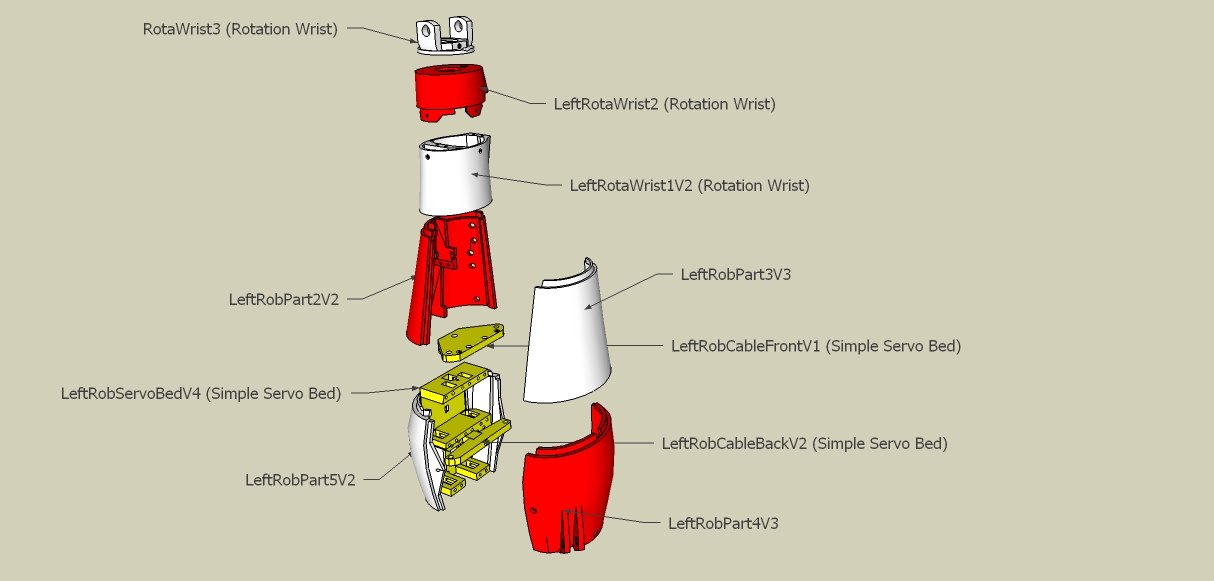

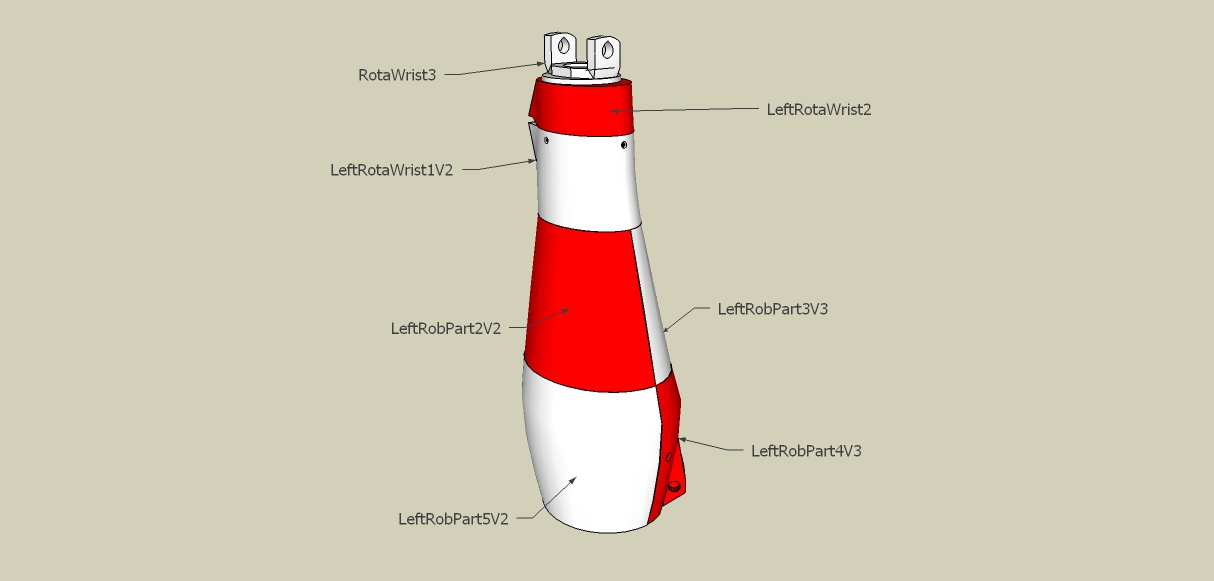

Left Forarm with Rotational Wrist.Thanks to Anar for this colored sketchup (http://www.reppersdelight.spacymen.com)
