inmoov-shoulder

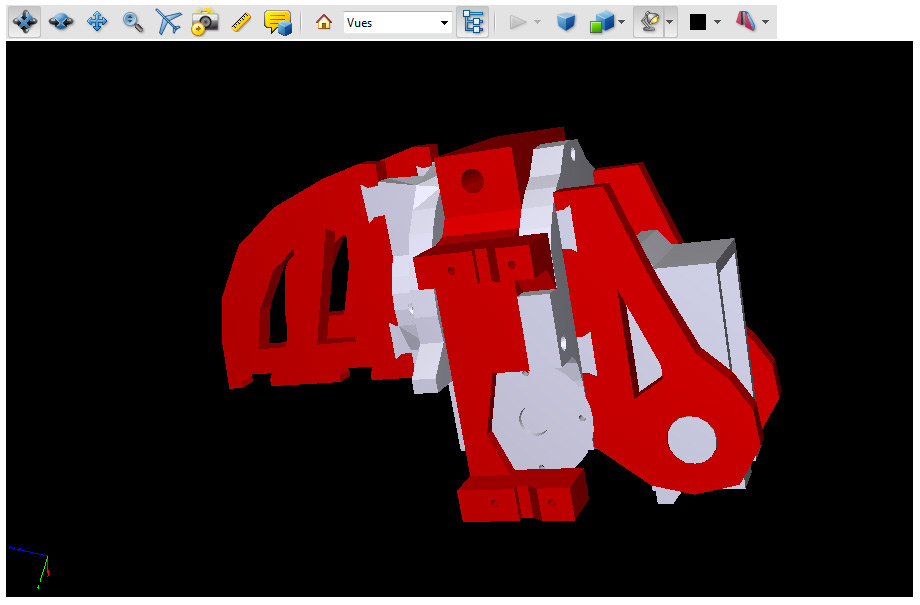

Thanks to Anar for these great colored 3D sketchs

  • Adobe Reader needs to be installed on the computer. (Adobe Official site)
  • Safari works automatically if Acrobat Reader is installed.
  • In Firefox since version 15, the Adobe Reader pluggin needs to be turned on in preferences/applications/Portable document formats.
  • Using Chrome browser. Go to Chrome’s address bar and type in: chrome://plugins/
  • Then disable “Chrome PDF Viewer” and enable “Adobe Acrobat”.

Comments 2

  1. Terry McConnell

    Hello,

    I am having trouble with the pivworm, it doesn’t rotate the gear properly, it hits the top of the spiral of the worm and then when I turn the worm the other way, it hits the gear at the bottom of the spiral of the worm.
    I will try to get some pics or a video to show you.
    Are others having the same problem or is there another version, I am using pivworm V2.

    Thank you

    Terry

    • John

      Hi Terry, it sounds to me like as if you should try scaling down the worm bit (max of 3mm) as I have encountered an problem where the neck was to wide so I simpley used an deremel to sand away what made the worm so hard to rotate now it works very well.

      Cheers Johny
